LEHY-L-PRO

Strong Coping Capability of Specification

• Large rated capacity: the max. capacity reaches 2500kg
• Fast rated speed: the max. speed is increased to 3m/s (1050 - 1600kg)
• Large car size: the max. car width is 2200mm, the max. car depth is 2700mm, and the empty ceiling height is 3400mm
• Large opening size: the max. opening size is 1500mm(CO)/1800mm(2CO)
• Large decoration weight: when the capacity is 1600kg and the car exterior height is 3400mm, a decoration weight up to 600kg is reserved

Adaption to Wide Scenes

• Many derivative elevator models: In addition to passenger elevators, derivative elevators include medical elevators, sightseeing elevators, fire elevators (mirror cabinets, hidden elevator storage structures), etc.
• Application scenes include: high-end residences, commercial office buildings, hospitals, etc.

Advantages of Civil Size

Through the brand-new hoistway layout design and the structural optimization of thin door machine and other components

Good Quality of Components

Industry-leading Design Benchmark

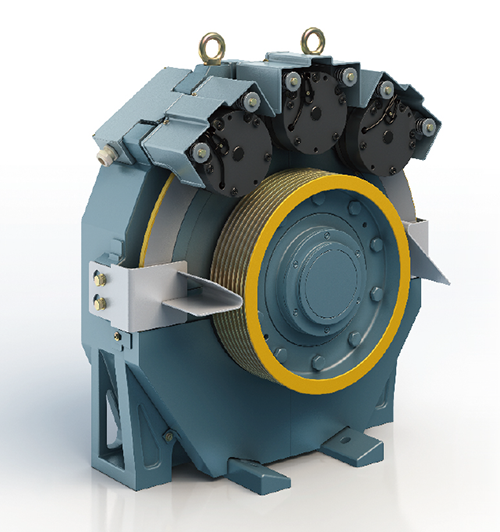

Traction machine, control panel, door system and safety components are all original products of SMEC

High Safety Factor

Absolute Position Sensing System

The high-precision car position sensing system eliminates the "slide" phenomenon, thus significantly reducing potential safety hazards, and the leveling accuracy is controlled within ± 5 mm.

Brand-new Electronic Safety System

A safety system covering more than 30 safety functions and fast positioning in all round.

Intelligent self-inspection

The 24-hour comprehensive self-inspection function actively or regularly allows the elevator to implement high-precision intelligent diagnosis during the idle period of the elevator.

Adopt high-performance dual-core MCU and independent physical communication channels

It is equipped with multiple safety MCUs to collaboratively realize the signal monitoring and safety protection of the elevator, ensuring the reliability and real-time performance of information transmission.

Saving More Time for Passengers

Efficiency Mode

the five-minute transport capacity of single elevator can be increased by more than 20%
DOAS

With DOAS, the maximum transport capacity of the elevator bank under group control is increased by 30%

Saving More Labor for Property Management

EleCare

Through LNK, the cloud function of EleCare is provided to view comprehensive elevator data, recognize multiple hazards, automatically push warnings, remotely perform highly free elevator operation control, custom voice announcement for multi scenes, and provide convenient and quick maintenance services.

OpenAPI

Provide cloud interface for elevator operation data to help customers build intelligent platforms and facilitate digital transformation.

More Pleasant Design

Abundant Prefabricated Decorations

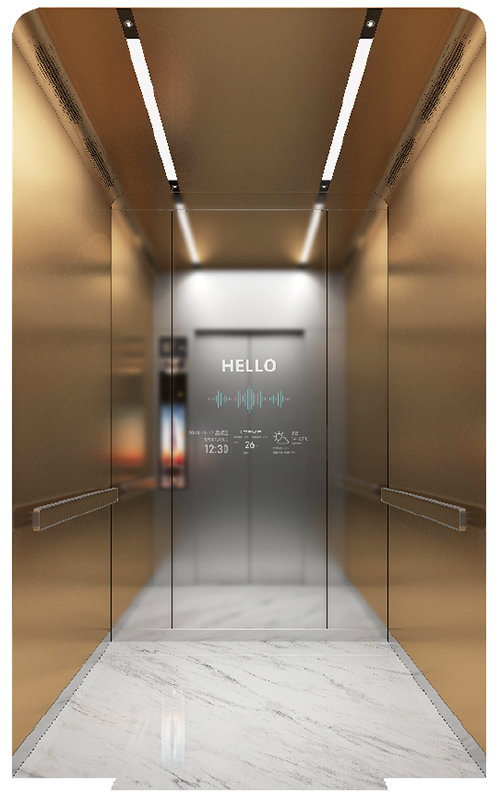

Integrated car decoration scheme and R-Box car decoration scheme provide original prefabricated decoration that closely follows the fashion trend of modern architecture and interior design.

Reliable Original Customization

Original customization is provided through CQS, and the capability to apply diversified customization from early design connection to late manufacturing and installation can ensure that customized components are safe and reliable and match the overall style of customers.
